Bollards are sturdy posts used for safety, security, and traffic control. Proper installation of bollards is critical to ensuring they function as intended—whether to intercept vehicles, guide traffic, or protect property.
Although the specific installation process varies depending on the type of bollards (fixed, removable, retractable) and site requirements, the general principles are the same.
1. Planning and Site Preparation
Proper planning is essential before beginning installation.
Assess the Purpose
Is it for safety (vehicle impact resistance)?
Is it for traffic control (guiding or restricting access)?
Is it for decorative purposes (urban landscaping)?
Check Regulations
Local building codes
Accessibility standards (e.g., the Americans with Disabilities Act in the United States)
Safety and Spacing Guidelines
Mark the Location
Measure spacing (typically 3–5 feet apart to ensure pedestrian safety)
Mark precise locations with chalk or spray paint
2. Selecting Installation Methods
Installation methods depend on the type of bollard:
Embedded (fixed) bollards: Deeply embedded in concrete to form a permanent, high-strength barrier.
Surface-mounted bollards: Bolted to existing concrete surfaces (lower impact resistance).
Removable/retractable bollards: Installed in ground sleeves or mechanical housings for flexible access control.
3. Required tools and materials
Common tools:
Excavator or drill
Shovel
Level
Tape measure
Trowel
Materials:
Bollard posts
Pre-mixed concrete
Reinforcing bars (for bollard reinforcement)
Anchor bolts (for surface mounting)
Safety gear (gloves, goggles, boots)

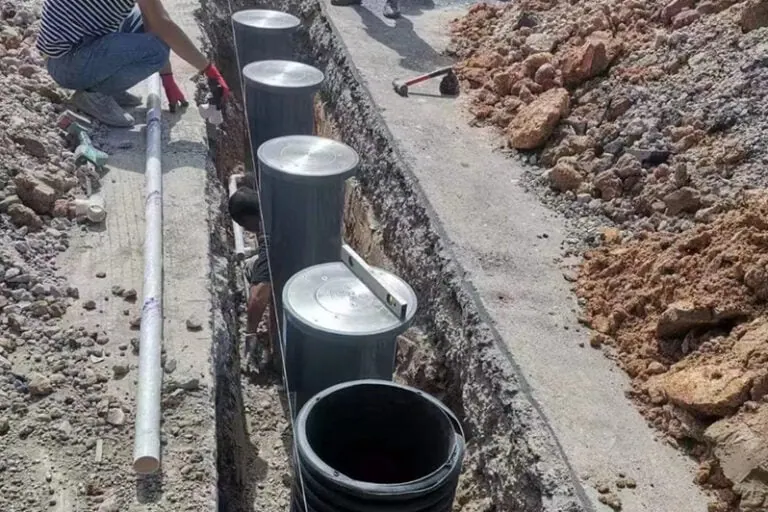

4. Embedded (fixed) bollards installation steps
This is the most common installation method for safety and traffic bollards.
Step 1 – Digging the hole
Depth: Typically 18-48 inches (crash-resistant bollards require deeper holes)
Diameter: At least 3-4 times the width of the bollard
Ensure the hole depth meets the manufacturer’s recommendations
Step 2 – Add reinforcement (Optional)
Insert a reinforcement cage or rebar to enhance strength
Position it at the point where the bollards connects
Step 3 – Place the bollards
Position the bollard at the center of the hole
Use a level to ensure it is completely vertical
Step 4 – Pour concrete
Fill the hole with concrete until it reaches ground level
Compact to eliminate air bubbles
Smooth the surface
Step 5 – Curing
Cure the concrete for at least 24-48 hours before use
Avoid applying loads or impacts during curing
5. Installation steps for exposed bollards
Step 1 – Position and mark
Position the bollard at the desired location
Mark the anchor bolt holes
Step 2 – Drilling
Use an impact drill with a masonry drill bit
Drill to the specified depth for the anchor bolt size
Step 3 – Securing the bollard
Place the bollard base over the hole
Insert the anchor bolts and tighten
6. Finishing Work
Coating and Painting: Apply anti-rust paint or powder coating
Reflective Tape: Enhance nighttime visibility
Guardrail cover/sleeve: Protect the surface and enhance aesthetics
7. Bollard-installation inspection
Confirm alignment and stability
Check for accessible space (for pedestrians, wheelchairs, strollers)
Test retractable or removable devices (if applicable)
Safety precautions
Always wear safety gear during installation
For high-security, crash-rated bollards, hire professional installers
Ensure the foundation is sufficiently deep to withstand expected impact loads
Installing bollards is a straightforward process, but it requires careful planning, appropriate tools, and strict adherence to safety standards. Whether installed for safety, traffic control, or aesthetic purposes, properly installed bollards provide reliable service for years. For optimal performance (especially in impact-resistant applications), professional installation is recommended.
