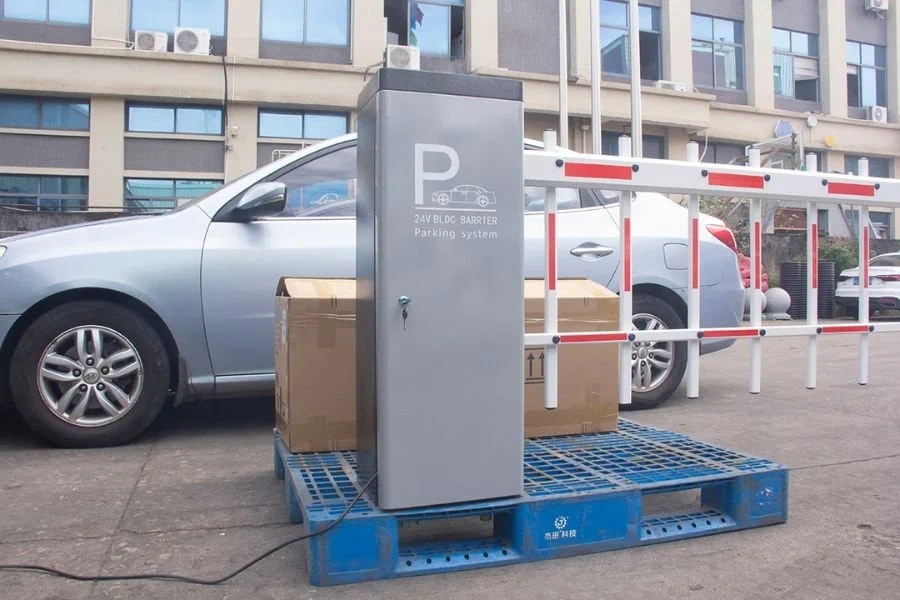

Automatic Boom Barrier
Features:
Barrier Arm Center Height: 815 mm
Housing Dimensions: 335 × 260 × 925 mm
Barrier Arm Length: Straight Arm ≤ 6 m

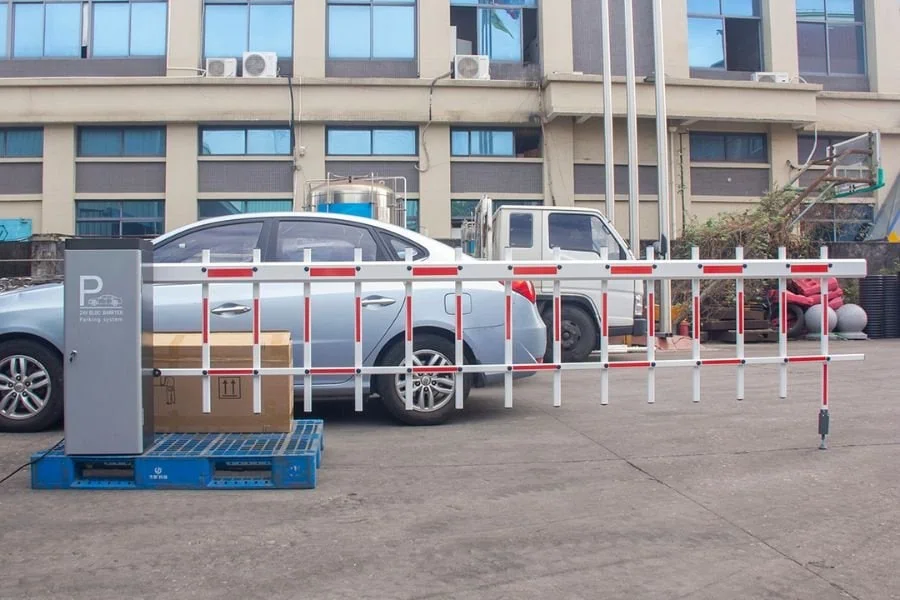

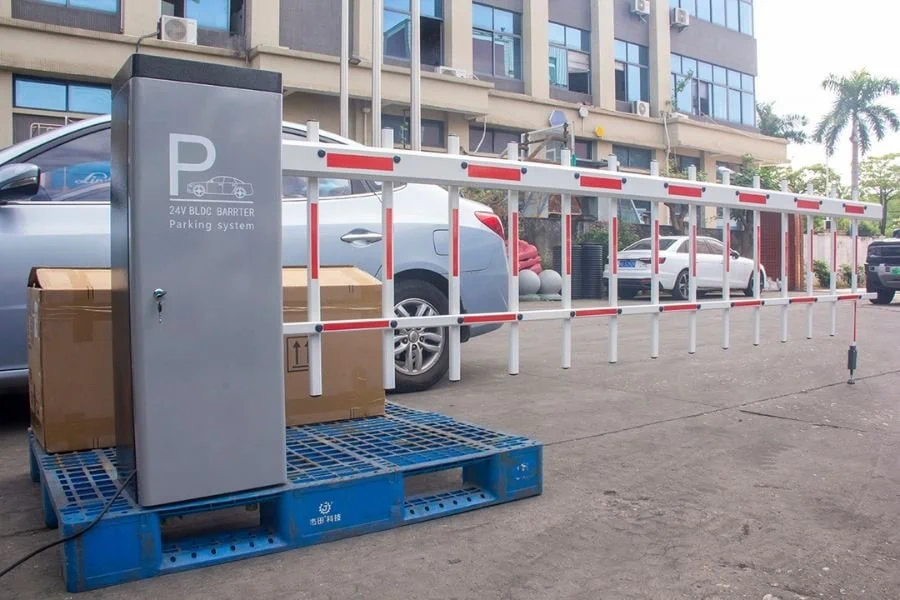

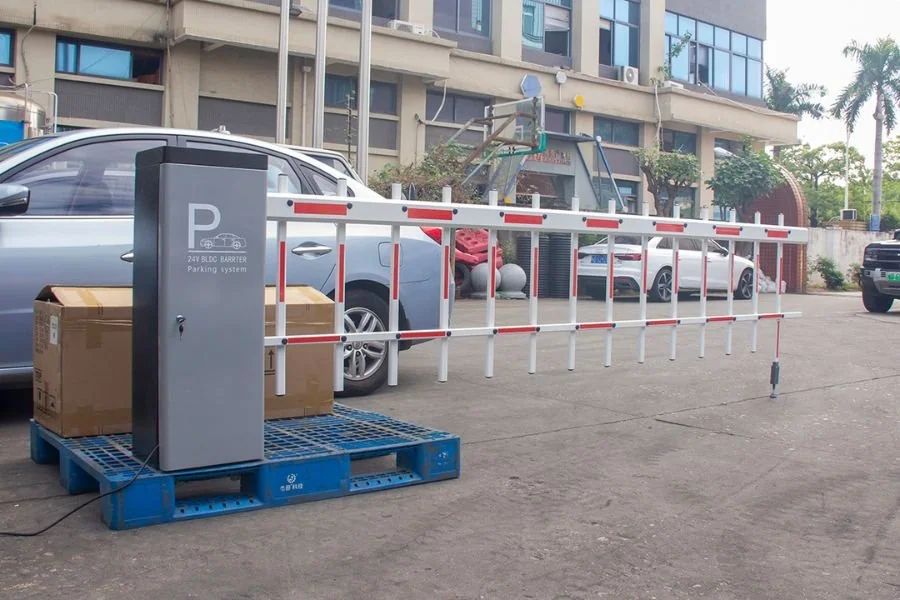

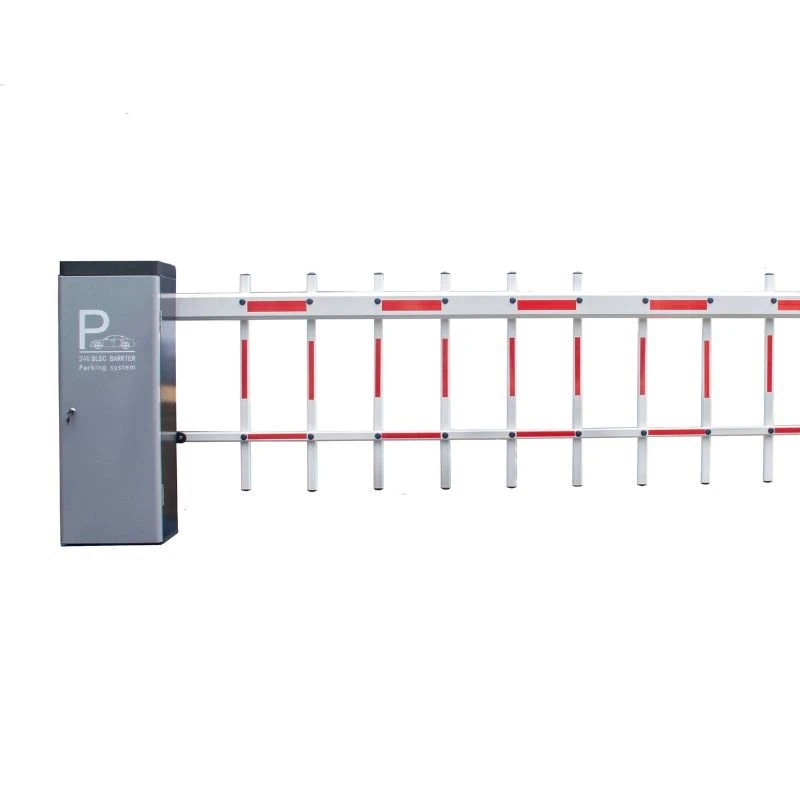

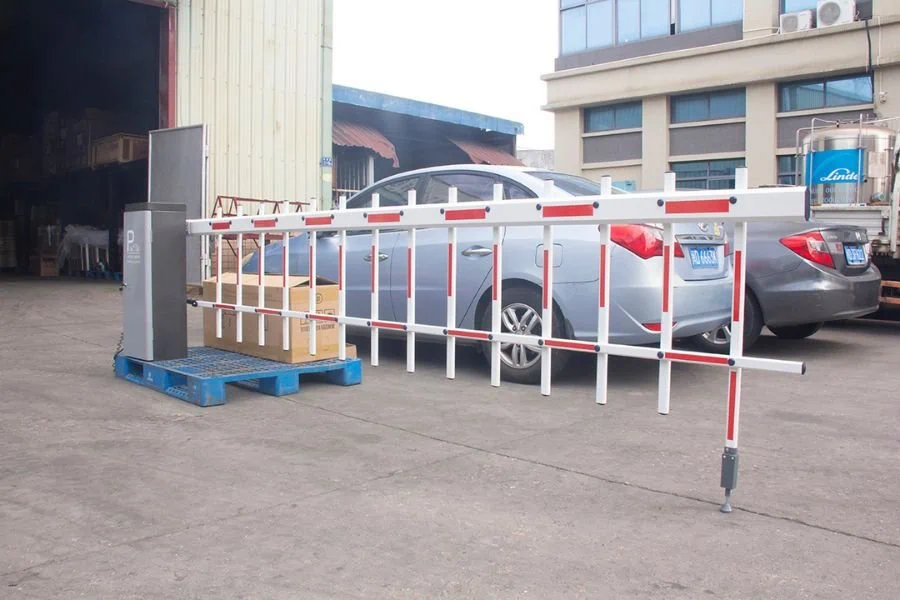

Fence Arm ≤ 4 m
Folding Arm ≤ 4 m
IP Protection Rating: IP54
Operating Voltage: DC 24V
Motor Power: 150 W
Operating Ambient Temperature: -40°C to 85°C
Relative Humidity: ≤ 95%
Remote Control Frequency: 433 MHz
Remote Control Distance: ≤ 40 m
Opening/Closing Speed: 3–6 seconds (Adjustable)
Motor Lifespan: ≥ 5 million cycles
Security Design
Anti-collision Rebound: If the barrier arm encounters an external obstruction while lowering, it will automatically retract to prevent damage caused by operational errors.
Ground Sensor Anti-crushing: If the barrier arm receives a signal from the ground sensor while lowering, it will automatically retract and remain raised until the signal is restored, ensuring safety.
Open Priority Anti-Crush: If an emergency occurs while the barrier arm is lowering—regardless of whether it is in the opening or closing cycle—the arm will execute the opening action as soon as an open signal is received.
Anti-Crush Rubber Strips: The barrier arm can be equipped with optional rubber strips to mitigate damage caused by accidents. An optional pressure sensor can be installed to increase the sensitivity of the obstacle detection and rebound function.
Function
The housing is made of cold-rolled steel with a thickness of 1.4 mm, making it sturdy, durable, and waterproof, suitable for outdoor
environments.
The design is simple and elegant, with a sophisticated and stable appearance, and custom colors are available.
The housing features built-in traffic lights: red when the barrier is closed and green when open, giving it a high-tech look.
Multiple control options are available for users to choose from. The barrier can be manually controlled via buttons on an external control box
Users can manually control the barrier’s raising, lowering, and stopping via buttons on an external control box, or opt for a remote control unit to operate the barrier from a distance.
The barrier incorporates multiple safety protections (wind protection, motor thermal protection, anti-electrostatic discharge protection, surge protection, and lightning protection, etc.), significantly enhancing the safety and reliability of its operation.
The 24V DC brushless motor is equipped with an obstacle detection and reversal function, effectively reducing injuries caused by crushing vehicles or people.
When used with an optional vehicle detector, the barrier gains functions such as “automatic lowering after a vehicle passes” and “automatic raising if a vehicle is detected during lowering,” thereby enabling automatic closing and comprehensive anti-crushing protection.
It features a “vehicle priority” function, which effectively improves the efficiency of vehicle passage through the lane.
The system uses standard electrical interfaces, allowing for easy connection to other systems selected by the user.
All moving parts have been adjusted to achieve optimal motion and balance, ensuring stable performance of the machine.
