Crash Rated Automatic Bollard
Model No. LZYZ-A2-273A
The Jietian crash rated bollard has been tested by Public Safety Authorities and can withstand the impact of a 6.8-ton truck traveling at 80 km/h.
Features:
● Intercept Height: 600mm(customizable)
● Diameter: 273mm(customizable)
● Thickness: 10mm(customizable)
● Main Material: Stainless Steel
● Base: Hot-dip galvanized and powder coating
● Waterproof Rate: IP68
● Work Voltage: 220V(customizable)
● Work Temperature: -40℃~70℃
● Speed: Raising 2~4s, lowering 2s
● Control Mode: Remote Control
Crash Rated Bollard Testing
Crash rated automatic bollards are certified to withstand vehicle impacts and comply with standards such as ASTM F2656 and PAS 68. These standards specify impact speeds and permissible penetration distances following an impact, and use classifications such as Class K and Class M to categorize crash barriers based on their performance during testing.
The Jietian crash rated bollard has been tested to withstand a 6.8-ton truck traveling at 80 km/h. The penetration distance of the vehicle after striking the barrier ranges from 1 to 7 meters. Its crash rating is equivalent to K12 or M50.

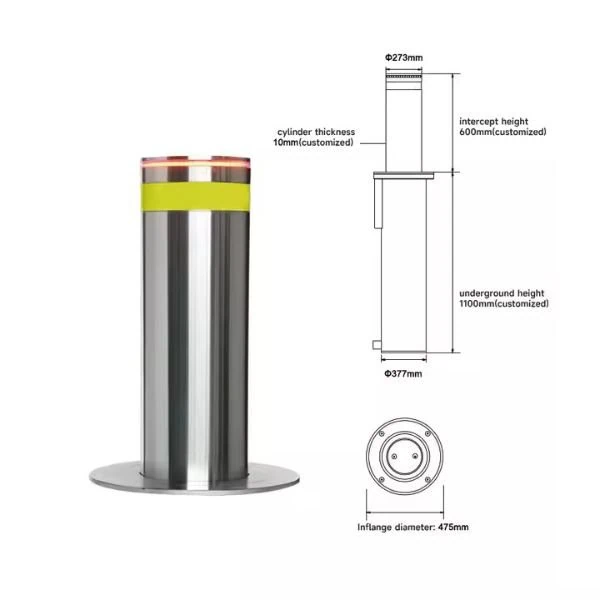

Crash Rated Automatic Bollard Specification
The Jietian crash rated bollard has a diameter of 273 mm, an interception height of 600 mm, and a wall thickness of 10 mm. It is more impact-resistant than standard automatic bollards with a diameter of 219 mm. It can intercept various types of trucks and vehicles.

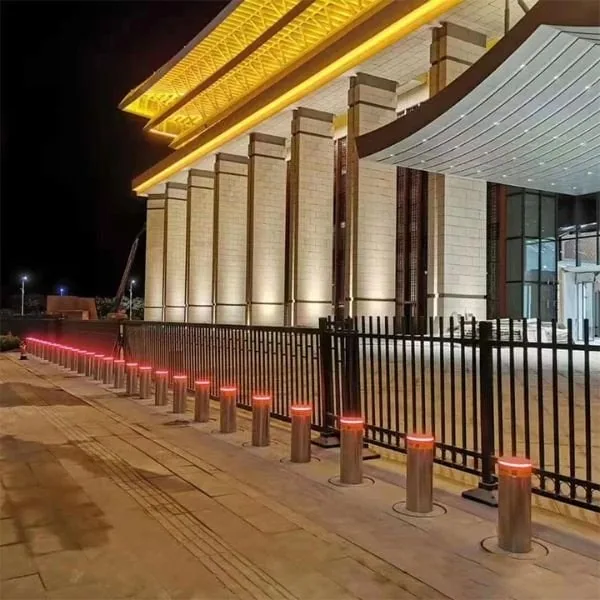

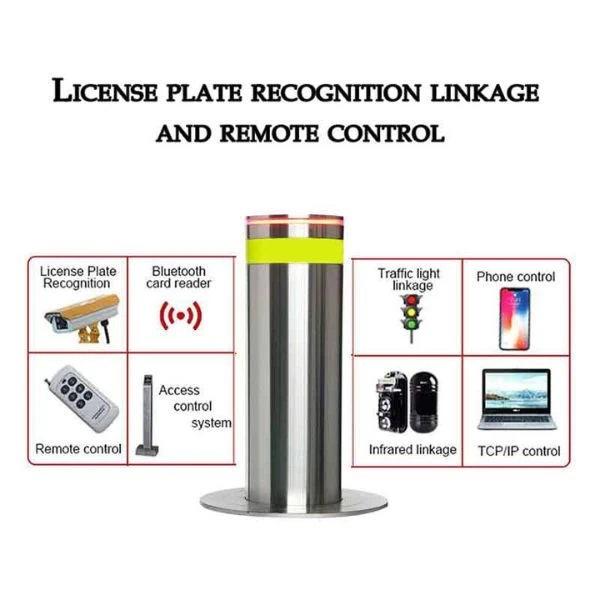

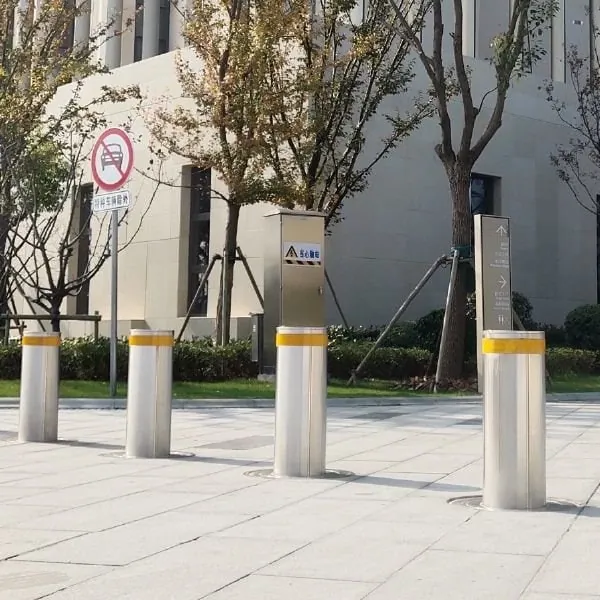

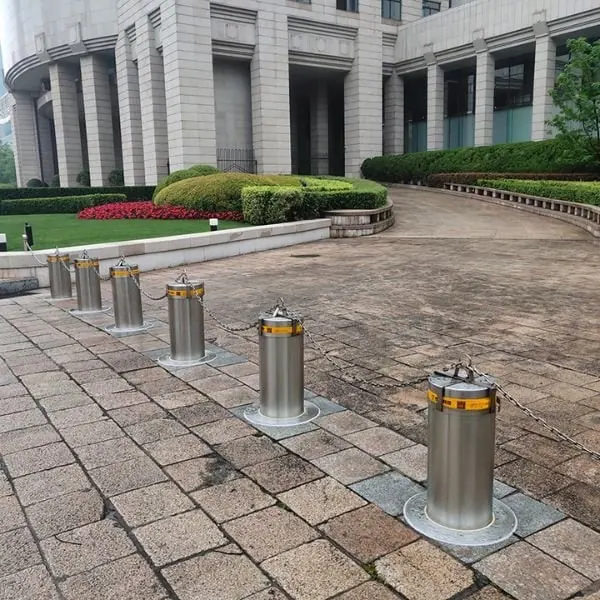

These bollards are commonly used in high-security locations such as government buildings, military zones, and airports. They also come equipped with multiple features, including remote control capabilities and integration with smart devices such as mobile apps, license plate recognition systems, and traffic lights. If you have any other requirements, please contact us for a quote.
