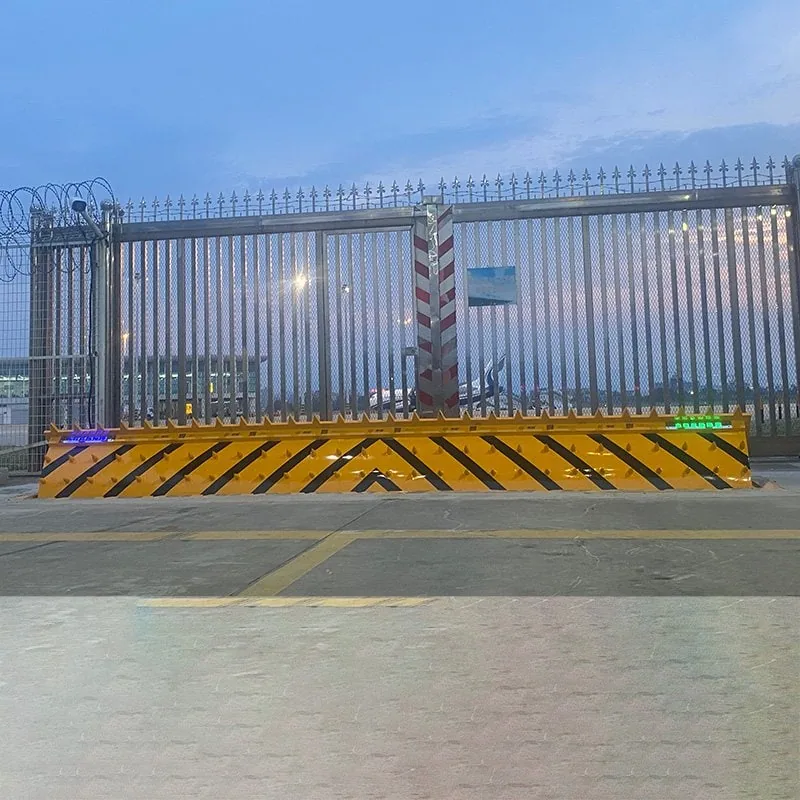

What is a Road Blocker?
A road blocker is a heavy-duty, retractable security barrier installed across roadways to prevent unauthorized vehicle access and defeat Hostile Vehicle Mitigation (HVM) threats.
Unlike standard traffic boom gates that only act as visual deterrents, a high-security road blocker is physically engineered to physically stop heavy, high-speed vehicles—including fully loaded commercial trucks—dead in their tracks upon impact.
How Does a Road Blocker Work?
A road blocker operates using a heavy steel spade or wedge plate that rises out of a ground trench when activated. When flush with the road, vehicles can drive smoothly over the barrier plate.
When raised, the road blocker creates an impenetrable steel wall extending up to 700 mm (or higher) above the ground level.
Actuation Mechanisms

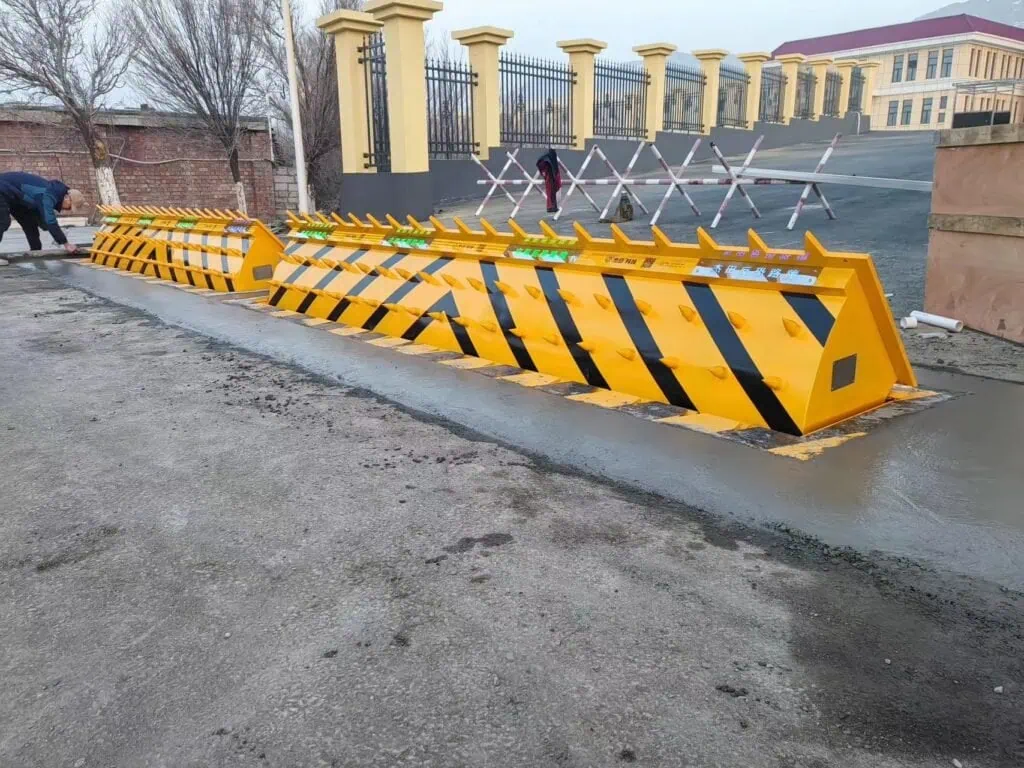

Most commercial and government facilities utilize hydraulic drive systems due to their exceptional power and continuous operational duty cycle.
- Hydraulic Systems: Powered by a Hydraulic Power Unit (HPU), offering rapid raising speeds, high reliability, and superior resistance to extreme weather.
- Electromechanical Systems: Motor-driven mechanisms often chosen for lower-traffic sites or locations sensitive to hydraulic fluid usage.
- Manual/Pneumatic Systems: Used primarily as secondary backup deployments during complete electrical grid power outages.
Key Types of Road Blockers
When selecting a security barrier, understanding the structural profile is critical to matching site conditions.
1. Shallow Mount Road Blockers
Traditional barriers require deep ground excavation—often exceeding 1,000 mm—which risks striking underground gas pipes, water mains, or fiber-optic lines. A shallow-mount road blocker requires minimal pit depth (often 300 mm to 500 mm), dramatically reducing civil construction time and costs while preserving underground utilities.
2. Deep Foundation Road Blockers
Designed for sites without underground utility restrictions, deep foundation models embed deeply into reinforced concrete foundations to deliver maximum kinetic energy absorption against massive freight vehicles.

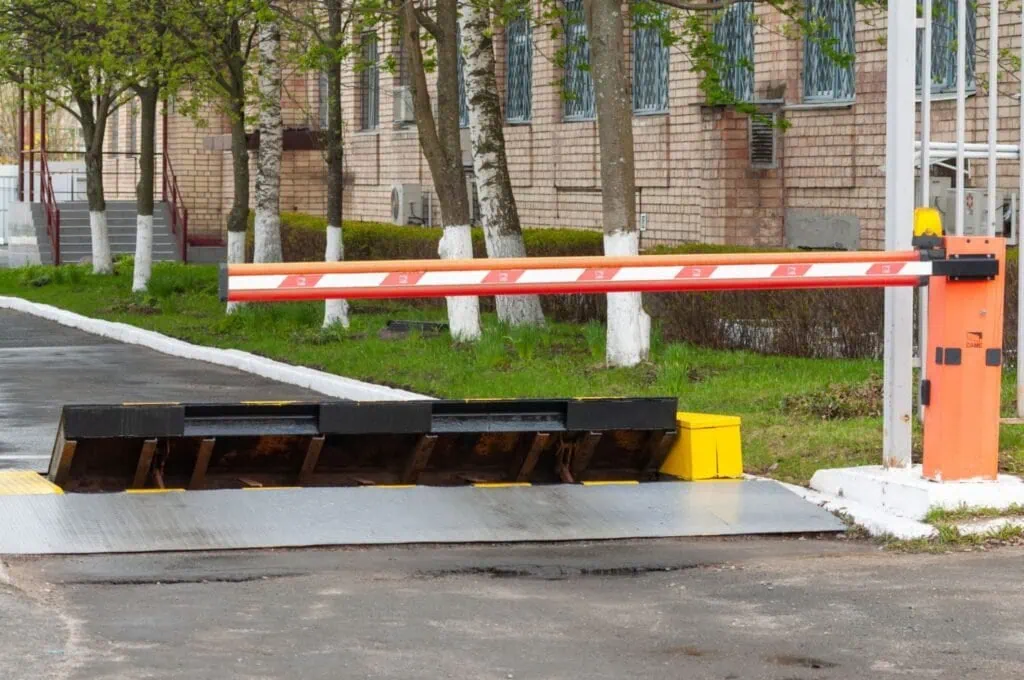

3. Surface Mount Road Blockers
Ideal for temporary security checkpoints, construction zones, or rental sites, surface-mounted barriers feature ramps on either side and require zero underground excavation.
Crash Ratings and Impact Standards
Not every road blocker offers the same level of stopping power. High-security systems undergo rigorous physical crash testing using real trucks driven into the barrier at target speeds.
| Standard | Test Vehicle Mass | Test Impact Speed | Common Equivalent |
| China GA/1343-2016 | 6,800 kg (6.8 Tons) | 65 km/h | K12 / M50 |
| ASTM F2656 / M50 | 6,800 kg (15,000 lbs) | 80 km/h (50 mph) | P1 Zero Penetration |
| PAS 68 / IWA 14-1 | 7,500 kg (7.5 Tons) | 80 km/h | International Standard |
Choosing a certified system ensures that even if a 10-ton truck attempts a high-speed breach, the road blocker structure absorbs the dynamic impact force and halts the vehicle before it breaches the perimeter line.
Main Applications & Key Benefits
Integrating a high-security road blocker into your perimeter security architecture provides distinct operational advantages:
- Hostile Vehicle Mitigation (HVM): Eliminates the threat of vehicle-borne improvised explosive devices (VBIEDs) and deliberate ramming attacks.
- Critical Infrastructure Protection: Essential for military bases, government buildings, power plants, airport perimeters, and foreign embassies.
- Flexible Access Control: Integrates seamlessly with license plate recognition (LPR) cameras, card readers, wireless remotes, and central guardhouse consoles.
- Extreme Thermal Resilience: High-grade hydraulic units operate reliably across temperature extremes from -40°C to 70°C.
Summary: Securing Your Perimeter
Whether protecting government assets or commercial facilities, choosing the right road blocker system balances physical crash resistance, installation depth, and daily traffic throughput. By pairing certified anti-ram engineering with modern shallow-mount design, facility managers can achieve maximum perimeter protection with minimal ground disruption.
