Hydraulic Road Blocker

Model No. JT-LJT-02

The Jietian hydraulic road blocker is an effective security solution for hostile vehicle mitigation, designed to protect pedestrian, building, critical infrastructure, and more. We can customize road blocker based on the client’s drawings.

Features:

● Intercept Height: 600mm (customizable)

● Width: 3000mm (customizable)

● Thickness: 25mm (customizable)

● Main Material: Q235 carbon steel

● Crash Resistance: 10T trucks with 80km/h

● Work System: Hydraulic

● Work Voltage: AC 380V

● Power: 1.5KW~3.7KW

● Work Temperature: -40℃~70℃

● Control Mode: Remote control, console

Hydraulic Road Blocker Installation

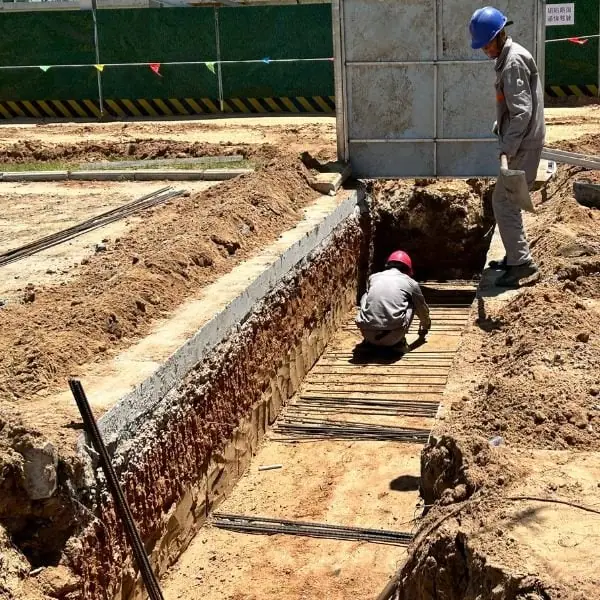

1. Excavate the road surface according to the drawing specifications.

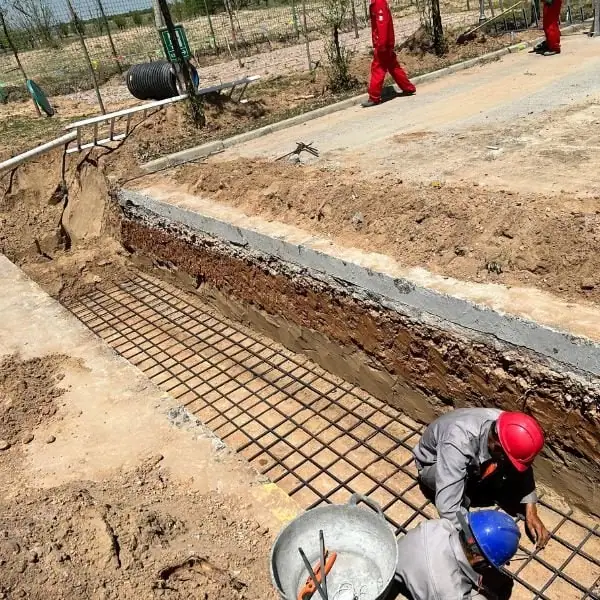

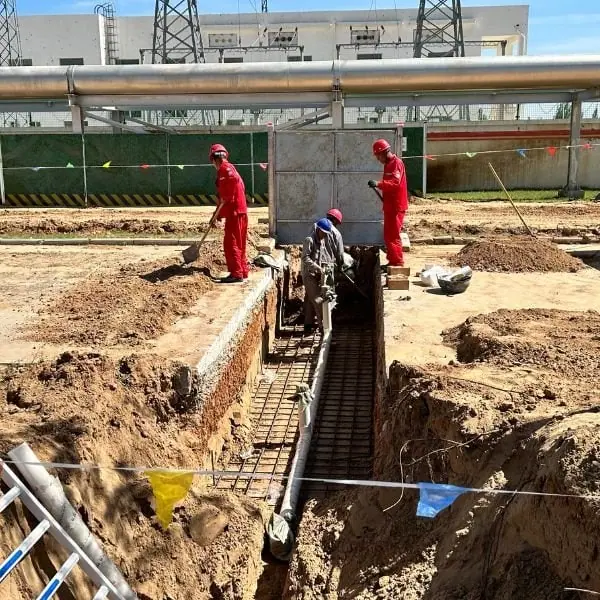

2. Install a permeable layer or drainage system at the bottom of the excavation.

3. Position the road blocker and use a level to ensure it is flush with the ground.

4. Embed conduit, connect the wiring, and test the road blocker.

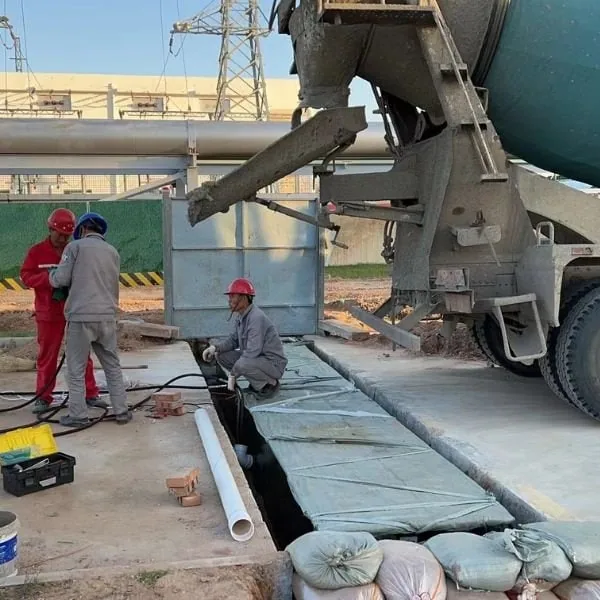

5. Backfill with concrete.

Hydraulic Road Blocker Manufacturer in China

Jietian is a leading manufacturer of road blockers in China. We have successfully completed numerous large-scale projects and have customized various types of road blockers for international clients.

Whether you need hydraulic road blockers, crash rated road blockers, shallow mount road blockers, or other types, we can customize them for you.
